FLUORESCENCE SENSING PRINCIPLE
Fluorescence Fiber Optic Temperature Sensing
Fluorescence fiber optic temperature sensing determines temperature at a defined probe tip by evaluating the temperature-dependent decay behavior of a fluorescent sensing material after optical excitation.
The sensing location requires no electrical power or metallic signal wiring. Excitation and return light travel through the optical fiber to a separate monitoring instrument, making the method suitable for selected measurement points in high-voltage, strong-EMI, RF, microwave and magnetic-field environments.
For the complete measurement chain, system components and application selection, see our Fiber Optic Temperature Measurement guide.
What Is Fluorescence Fiber Optic Temperature Sensing?
Fluorescence fiber optic temperature sensing is a point-measurement method in which a fluorescent sensing material is located at the end of an optical probe. Light from the monitoring instrument excites the sensing material, and the returned fluorescence response changes with temperature.
INNO uses the temperature-dependent fluorescence decay behavior to determine the temperature at the sensing tip. The optical fiber transfers excitation and return light between the probe and monitoring instrument; the fiber itself is not used as a distributed sensing path.
For a broader explanation of complete fiber optic temperature measurement systems, probes, channels and monitoring instruments, see: Fiber Optic Temperature Measurement.
Measurement Principle
Fluorescence decay time
Measurement Type
Point temperature sensing
Sensing Location
Fluorescent sensing tip
Signal Path
Monitoring instrument → optical fiber → sensing tip → optical return signal
FLUORESCENCE DECAY METHOD
How Fluorescence Becomes a Temperature Value
Four optical steps convert the response from the sensing material into a temperature value at one defined measurement point.
Optical Excitation
The monitoring instrument sends excitation light through the optical fiber to the fluorescent material at the probe tip.
→Fluorescent Response
After excitation, the sensing material emits a fluorescence response that returns through the optical fiber.
→Decay Time
When excitation stops, the fluorescence intensity decreases over time. The decay behavior changes predictably with temperature.
→Temperature Calculation
The compatible monitoring instrument evaluates the decay response and converts it into the temperature at the sensing tip.
Why Fluorescence Decay Time Indicates Temperature
The fluorescent material does not remain excited indefinitely after the excitation light is removed. Its emitted fluorescence decreases over time. The characteristic decay behavior varies with temperature, allowing the monitoring instrument to determine the temperature from the optical response.
The measurement is based on the temporal behavior of the fluorescence response rather than on an electrical resistance, thermoelectric voltage or temperature measurement distributed along the entire fiber.
DEFINED MEASUREMENT LOCATION
Point Temperature Measurement at Defined Locations
The fluorescent sensing material is located at a defined sensing tip. Temperature is therefore measured at that physical point rather than continuously along the optical fiber.
One probe represents one defined measurement location. If several physical locations must be measured independently, additional compatible probes and monitoring channels are required.
This is multi-point point sensing, not distributed temperature sensing.
OPTICAL SIGNAL TRANSMISSION
Why Fluorescence Fiber Optic Sensing Works in Strong Electromagnetic Fields
Electrical Isolation
The sensing tip does not require an electrical measurement circuit or metallic signal lead.
Optical Signal Transmission
Temperature information is carried through the optical path rather than as a low-level electrical sensor signal.
RF and Microwave Environments
The sensing principle can be used at defined measurement points exposed to strong RF or microwave fields.
Defined Point Measurement
Each probe remains associated with one known physical sensing location.
APPLICATIONS
Where Fluorescent Fiber Optic Temperature Sensing Is Used
Point fluorescence sensing is used where the thermally important location is known and direct temperature measurement is required at that physical point.
Transformer Monitoring
Direct point sensing at selected winding locations and known or expected thermally critical positions.
Switchgear & Busbars
Point sensing at selected contacts, joints, busbar connections and cable terminations.
Motors & Generators
Point sensing at selected stator and winding locations in motors or generators.
Medical & MRI
Point sensing at defined locations in strong magnetic-field environments.
Industrial Microwave
Point sensing at defined measurement locations in microwave and RF processes.
High-Voltage Testing
Point sensing on selected test objects and measurement locations in high-voltage environments.
TECHNOLOGY BOUNDARIES
How Fluorescence Point Sensing Differs from Other Optical Methods
Fluorescence Point Sensing
Temperature is measured at a defined fluorescent probe tip using temperature-dependent fluorescence decay behavior.
DTS
Temperature is measured at position-related locations along a sensing fiber route rather than at individual fluorescent probe tips.
Fluorescence Fiber Optic Temperature Sensing vs DTS →FBG
Temperature is measured at predefined fiber Bragg grating locations using wavelength-related optical response rather than fluorescence decay.
SENSING ELEMENTS
From Fluorescent Probe to Temperature Value
The technology requires three core elements: a fluorescent point probe, an optical fiber connection and a compatible monitoring instrument. The instrument provides excitation light, evaluates the returned fluorescence decay response and converts it into temperature data.

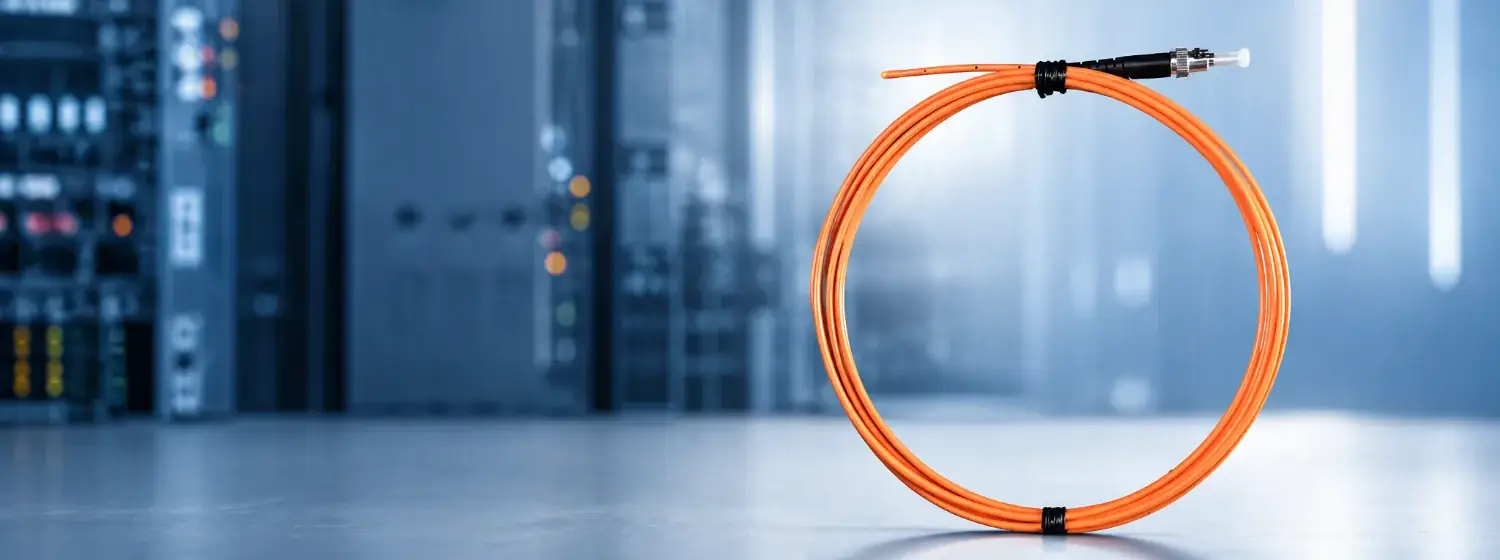

Fluorescent Fiber Optic Probe
Contains the defined sensing tip where the fluorescence response is generated.
Optical Fiber Path
Carries excitation and return light between the probe and monitoring instrument.

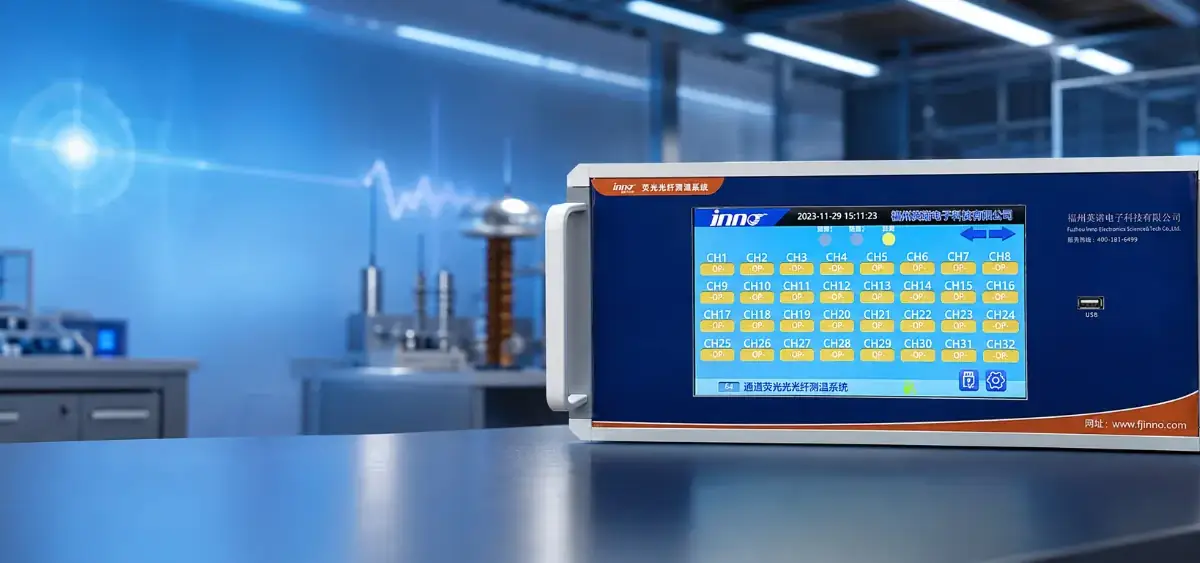

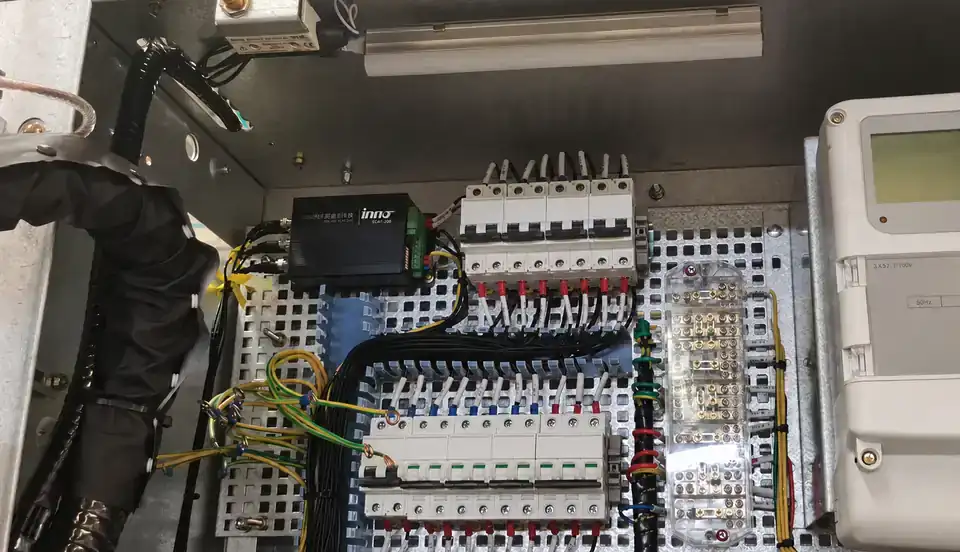

Monitoring Instrument
Provides optical excitation, evaluates the decay response and converts it into temperature data.
EXAMPLE INSTRUMENT IMPLEMENTATION

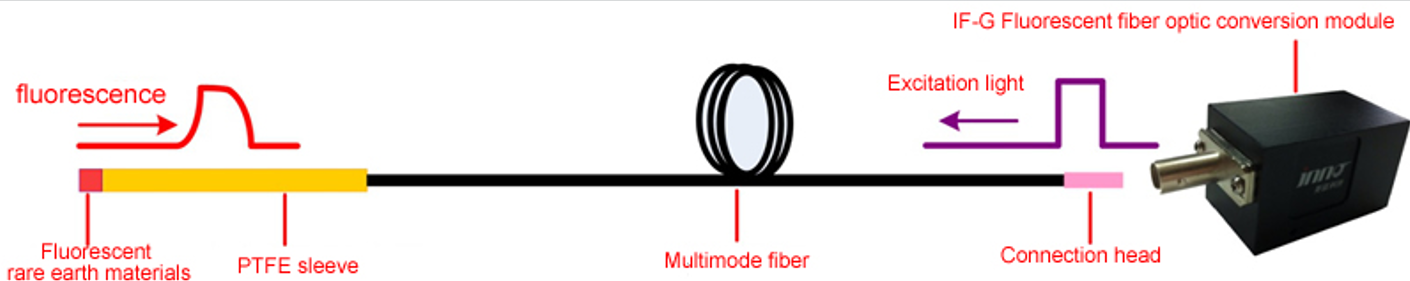

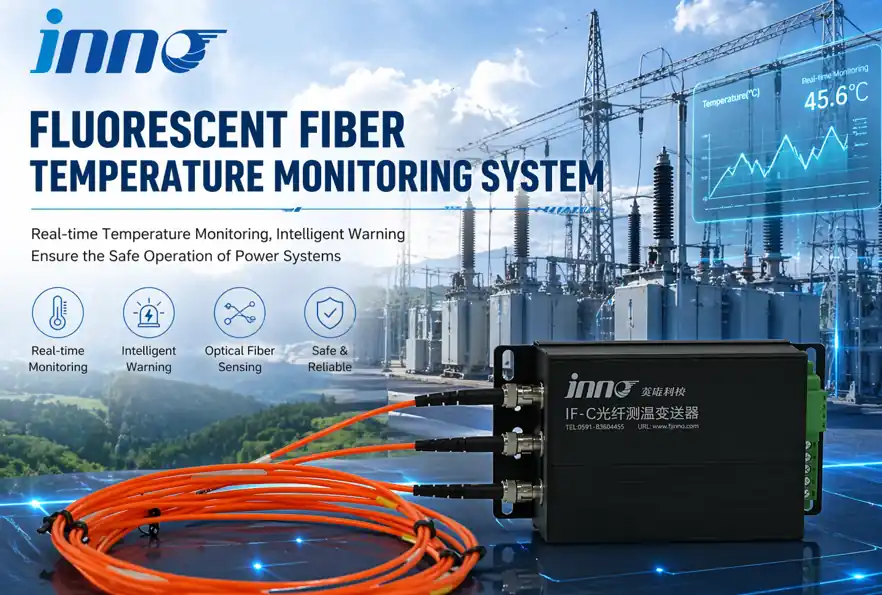

Example Fluorescence Signal Conversion Module
The IF-G module is one example of compatible hardware used to provide optical excitation and process fluorescence return signals in a point-sensing configuration.
View the IF-G module →POINT SENSING
When Is Fluorescence Point Sensing a Good Fit?
- The thermally important measurement locations are already known.
- A sensor can be installed directly at the target point.
- Electrical sensor wiring is undesirable at the sensing location.
- Strong EMI, RF, microwave or magnetic fields are present.
- Several known locations may need to be measured independently.
If the requirement is temperature measurement along an extended fiber route rather than at selected physical points, a distributed sensing method may be more appropriate.
FREQUENTLY ASKED QUESTIONS
Fluorescence Fiber Optic Temperature Sensing FAQs
How does fluorescence fiber optic temperature sensing work?
Light excites fluorescent material at the probe tip. After excitation stops, the fluorescence response decays over time. Because the decay behavior changes with temperature, a compatible monitoring instrument can determine the temperature at that sensing point.
What part of the sensor actually measures temperature?
The temperature-sensitive element is located at the fluorescent sensing tip. The optical fiber carries excitation and return light between the sensing tip and monitoring instrument.
Does the entire optical fiber measure temperature?
No. In fluorescence point sensing, temperature is measured at the sensing tip. The optical fiber acts as the optical signal path rather than as a distributed temperature measurement path.
What is the difference between fluorescence point sensing and DTS?
Fluorescence point sensing measures defined probe locations using a fluorescent sensing tip. DTS provides position-related temperature measurements along a sensing fiber route. They use different sensing architectures and serve different measurement tasks.
How is fluorescence sensing different from FBG?
Fluorescence sensing evaluates the temperature-dependent fluorescence response at a probe tip. FBG sensing uses predefined fiber Bragg gratings and a wavelength-related optical response. Both are optical sensing methods, but the sensing elements and interrogation principles are different.
Why is fluorescence fiber optic sensing useful near high voltage or strong EMI?
The sensing location does not require an electrical measurement circuit or metallic signal lead, and the measurement information is transferred optically to a separate monitoring instrument. This makes the method suitable for many high-voltage and strong electromagnetic-field measurement locations.
SENSING APPLICATION
Discuss a Fluorescence Fiber Optic Sensing Application
Tell us the physical measurement location, expected temperature range, number of sensing points, approximate fiber route and installation environment. These details help determine whether fluorescence point sensing is suitable and which probe and monitoring instrument should be considered.
- Measurement location
- Temperature range
- Number of sensing points
- Available installation space
- Approximate fiber route
- Electrical / EMI / RF environment
